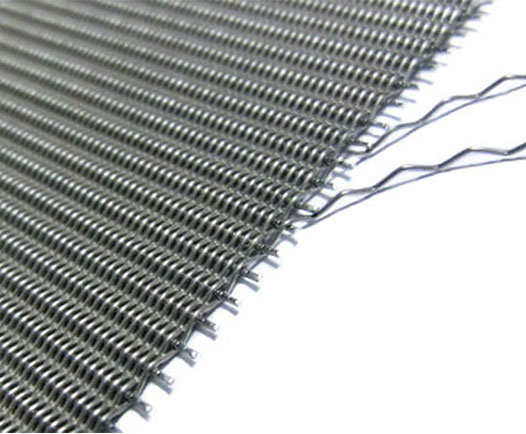

Plain Dutch Weave (PDW) Wire Mesh Cloth (Filter Screen)
Product Quick Details
Overview
TianHao's Plain Dutch Weave (PDW) Wire Mesh Cloth is engineered for high-performance filtration applications across multiple industries. Its unique weaving technique results in a smooth, fine surface with superior strength and high permeability. PDW mesh is especially suitable for filter candles in edible oil and pharmaceutical production, as well as wastewater treatment and pre-coat filter systems.
High Flow Rate
Optimized for minimal pressure drop, ensuring efficient filtration and throughput.
Food & Pharma Safe
Manufactured from stainless steel suitable for critical hygiene environments.
Durable & Robust
Long service life under high mechanical load and repeated cleaning cycles.
Fine Filtration
Absolute aperture from 5µm to 300µm, ideal for precision filtration.
Technical Parameters
The absolute aperture of the fabric ranges from 5 µm (2300 mesh) to 300 µm. TianHao stocks PDW mesh made from stainless steel grades 1.4301 and 1.4401. Below are typical technical specifications for reference:
| Mesh Count (warp x weft) | Wire Diameter (mm) | Absolute Aperture (µm) | Material |
|---|---|---|---|
| 24 x 110 | 0.36 x 0.25 | 110 | SS304/316 |
| 48 x 250 | 0.19 x 0.14 | 60 | SS304/316 |
| 80 x 700 | 0.10 x 0.07 | 30 | SS304/316 |
| 165 x 800 | 0.071 x 0.045 | 15 | SS304/316 |
| 325 x 2300 | 0.035 x 0.025 | 5 | SS304/316 |
*Custom sizes and alloys are available upon request.
Features
- Super thin compared to twilled dutch weave mesh
- Super fine & high permeability rate
- Long service life, easy to clean and maintain
- Enhanced strength and mechanical stability
- Resistant to corrosion and high temperatures
- Uniform filtration accuracy
Applications
- Food and beverage production
- Pharmaceutical and biotechnology industries
- Petrochemical and chemical filtration
- Water and environmental treatment
- Pre-coat filter systems
Customer Cases
Food Industry Customer
An edible oil production enterprise increased filtration efficiency by 30% after using this filter mesh, and product purity reached industry standards.
Pharmaceutical Industry Customer
A pharmaceutical company used this filter mesh for liquid medicine filtration, ensuring drug quality meets GMP standards.
Environmental Protection Industry Customer
A sewage treatment plant used this filter mesh to treat industrial wastewater, increasing the effluent compliance rate by 25%.
